| Place of Origin: | China |
| Brand Name: | Crystal Base |
| Certification: | CE/CSI/BS/ASTM |
| Model Number: | TSG |
| Minimum Order Quantity: | 100sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in Strong Plywood Crates or Cases with PE,paper or Saftpad interlayer |
| Delivery Time: | 15 days after order confirmed |
| Payment Terms: | T/T ,L/C,DP or western Union |
| Supply Ability: | 3,000 Sqm per Day |
| Product Name: | 15.2 Laminated Glass Swimming Pool Fence | Application: | Kylight, Railings, Escalators |
|---|---|---|---|
| Size Of Panel: | Various | Colours: | Clear |
| Standard: | CE/CSI/BS/ASTM | Type: | Flat Or Curved Sheet Glass |
| Thickness: | 8-12mm | Transmittance: | More Than 88% |
| High Light: | frameless glass pool fence,tempered glass fence panels |
||

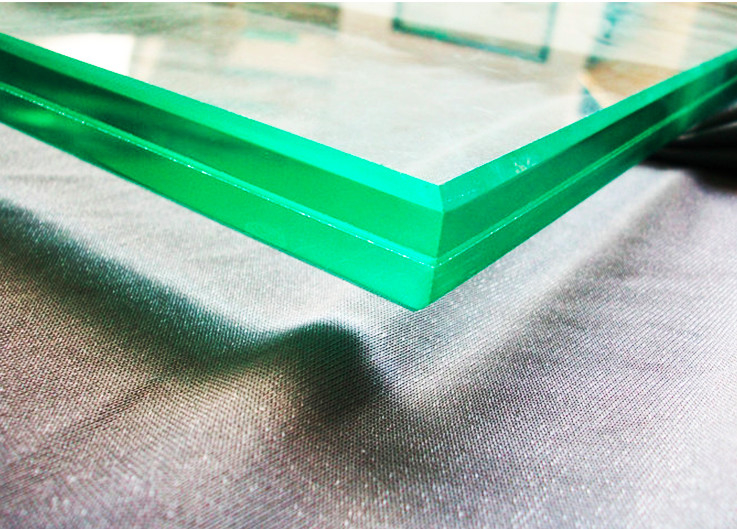

15.2 laminated glass swimming pool fence , Toughened Glass Swimming Pool Fence
Specification:
| Details | |
| • Name | 15.2 laminated glass swimming pool fence |
| • Thickness of sheet glass | 3mm to 19mm |
| • Thickness of laminated glass | 6.38mm to 42.3mm |
| • Thickness of PVB | 0.38mm/ 0.76mm/ 1.14mm/ 1.52mm to 3.04mm |
| • Color | Clear, black, milky, red, etc |
| • Minimum size | 250mm*350mm |
| • Maximum size | 2440mm*3600mm |
| • Forms of rupture | Fragments remain attached, avoiding the release of dangerous sharp shards of glass |
| • Types of services we can add glass laminates | Beveled, tempered, polishes straight and in forms, sandblasting (sandblasting), holes or throw-ins. |
| • Sun protection | More than 99% of UV rays filtering |
| • Packing details | 1.) Interlay paper or plastic between two sheets |
| 2.) Seaworthy wooden crates | |
| 3.) Iron belt for consolidation | |
| • Quality standard | CE, ISO9001, SGS, CCC |
| • Applications | Skylight, railings, escalators, window and doors,floor |
Application
1. Glass door curtain wall of building
2. Glass panel, glass cabinets,
3. indoor partition,elavator,showcase,door and window of building
4. bathroom, greenhouse, decoration of indoor
5. furniture and household appliance etc.
Feature
Safety: Glass is not easy to be broken when attacked. Broken glass particle is of honeycomb shape with obtuse angles which won't cause severe hurt to human body.
High mechenical-resistant srength:Impact-resistant strength of tempered glass is 3-5 times higher than that
of float glass of the same thickness.
Thermal stability :Thermal stability of tempered glass is 3 times higher than that of float glass of the same thickness. Tempered glass can withstand sudden tenperature shift of 220℃-250℃ while float glass can only withstand shift of 70℃-100℃. When tempered glass suffers rapid cooling of a certain extent, the internal tensile stress and compressive stress on the surface can offset due to opposite stress direction. When tempered glass is heated extremely, compressive stress is generated on the surface of glass which is as double as tensile stress. Therefore, tempered glass also can withstand certain level of rapid heating up.
Good flexibility :Deflection angle of tempered glass is 3-4 times larger than that of float glass of the same thickness. When there is load on tempered glass, its maximum tensile stress does not located on the glass surface as float glass, but on the central point of glass sheet.
