| Place of Origin: | China |
| Brand Name: | Crystal Base |
| Certification: | CE/CSI/BS/ASTM |
| Model Number: | TSG |
| Minimum Order Quantity: | 100sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in Strong Plywood Crates or Cases with PE,paper or Saftpad interlayer |
| Delivery Time: | 15 days after order confirmed |
| Payment Terms: | T/T ,L/C,DP or western Union |
| Supply Ability: | 3,000 Sqm per Day |
| Product Name: | Tempered Safety Glass | Application: | Bathroom, Greenhouse, Decoration Of Indoor |
|---|---|---|---|
| Size Of Panel: | Various | Colours: | Royal Blue,ford Blue,ocean Blue,F-green,green |
| Standard: | CE/CSI/BS/ASTM | Type: | Flat Or Curved Sheet Glass |
| Thickness: | 8-12mm | Transmittance: | More Than 88% |
| High Light: | frameless glass pool fence,glass swimming pool fence |
||

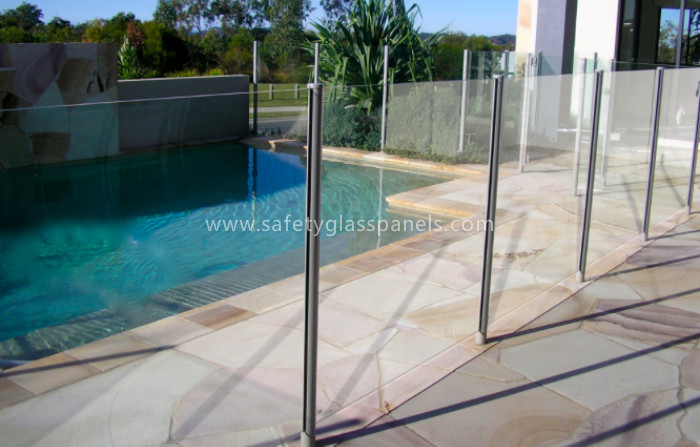

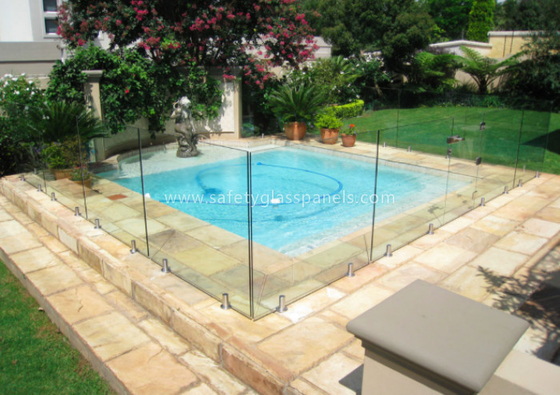

Glaverbel Annealed Glass Pool Fencing Building With 19mm Glass Cabinets
Tempered glass raw materials
Float glass,Glaverbel glass,On-line coated glass,On line LOW-E,Off line LOW-E, On-line SUN-E and so on.
Color: clear,royal blue,ford blue,ocean blue,F-green,green, dark grey,light grey,red bronze,golden bronze and so on .
Tempered glass production process
1. Cutting : cutting the annealing glass to the actual needs of shape.
2. Glass edging: Edging machine to mill the four edges to prevent frund when steeling,while maintaining the
beautiful appearance.
3. Drilling hole:If need to drilling hole using drilling machine.
4. Washing dry:cleaning the glass with washing maching.
5. Tempered glass:Tempered glass is produced by heating annealed glass in a furnace to 700°,then the
glass is rapidly cooled with jets of cold air to 40°,through the procedures, the original glass is formed of
tempered glass.
Specification:
|
Type:tempered safety glass |
Thickness:3-19mm |
Color:clear |
|
Tempered max size: 4200*2440 |
Min size: 300*300 |
Shape:Curve, Flat |
|
Heat Conductivity::5.7w/m2.k |
Bending strength::180Mpa |
Test broken::8pcs/cm2 |
|
Flatness limits::< 1.5‰ |
Size tolerance::+/- 1.5mm |
Hole tolerance::+/- 1.0mm |
|
Certificate:ISO9001,3c |
||
Feature:
1. Safety
Once breakage occurs, the glass disintegrates into small cubical fragments, which are relatively harmless
to human body.
2. High mechenical-resistant strength
The mechanical strength of tempered glass is as 3-5 times powerful as normal annealing glass, bending
strength is as 2-5 times powerful as normal flat glass.
3. Thermal stability
The excursion of temperature that tempered glass endure is 250-320 degree.
4. Can not be cut down
Once tempered, can not be cut down or drilling hole
Application
1. Glass door curtain wall of building
2. Glass panel, glass cabinets,
3. indoor partition,elavator,showcase,door and window of building
4. bathroom, greenhouse, decoration of indoor
5. furniture and household appliance etc.
