| Place of Origin: | China |
| Brand Name: | Crystal Base |
| Certification: | CE/CSI/BS/ASTM |
| Model Number: | TSG |
| Minimum Order Quantity: | 100sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in Strong Plywood Crates or Cases with PE,paper or Saftpad interlayer |
| Delivery Time: | 15 days after order confirmed |
| Payment Terms: | T/T ,L/C,DP or western Union |
| Supply Ability: | 3,000 Sqm per Day |
| Product Name: | Common Float Laminated Glass | Application: | Acid Etched Laminated Glass Railing |
|---|---|---|---|
| Size Of Panel: | Various | Colours: | Clear Or Light Green |
| Standard: | CE/CSI/BS/ASTM | Type: | Flat Or Curved Sheet Glass |
| Thickness: | 3+0.38+3mm, 4+0.38+4mm, 5+0.76+5mm, 6+0.76+7mm, | Transmittance: | More Than 88% |
| Softening Temperature: | 650 ~ 700 ° | ||
| High Light: | frameless glass pool fence,glass swimming pool fence |
||

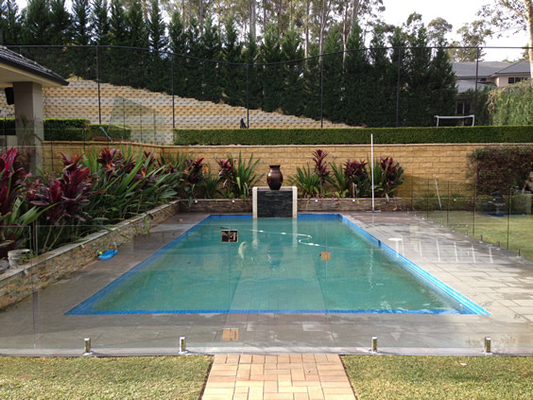

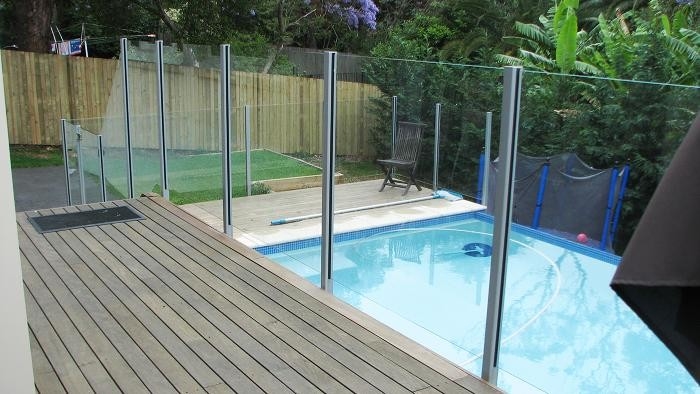

Flat Frameless Common Float Laminated glass Outdoor Swimming Pool Glass Fencing 3000x5000mm
Specification
| Glass Type |
Common float laminated glass, tempered laminated glass, Screen printed laminated glass, Wire laminated glass, metal mesh laminated glass, Acid etched laminated glass, etc. |
| Glass Color |
Clear, Extra clear, Freen Green, Dark Green, Ford blue, Dark Blue, Bronze, Euro Grey, Dark Grey, etc. |
| PVB/SGP Color | Clear, Green, Blue, Bronze, Grey, Milky white, Pink, Red, any color in RAL |
| Thickness |
3+0.38+3mm, 4+0.38+4mm, 5+0.76+5mm, 6+0.76+7mm, 8+1.14+8mm, 10+1.15+10mm, etc. |
| Size |
Max:3000x5000mm; Min:300x300mm Normal size: 1830x2440mm, 2140x3300mm, etc |
| Shape | Flat, Curve, Hot bent |
| Processing |
Heat soaked, Polished edge(flat, bevel, round, pencil, ogee, etc.), Drill holes, Cut notches, Silkscreen, Acid etched, Logo, etc |
| Quality | Control by BS6206 & Conforms to CE-ENISO12543-2-2011& ENISO12543-3-2011 |
Benefits
. Ensure good drainage of the framework so as to avoid the accumulation of water
next to the glass edges.
. The leak-proof and tightness seals must be compatible with the PVB interlayer.
. Mineral oil putty is forbidden especially linseed oil putty, certain acrylic & silicones.
. Cleaning solution with acidic base is forbidden for use to clean glass as there is a
risk of contact with the edges of the glass.
Applications
. Flat/ Curved laminated glass railing
. Silkcreen printed laminated glass railing
. Acid etched laminated glass railing
Advantages
1). No tong marks on the glass as TGI adopts the horizontally tempering process.
2). 5 times harder than ordinary annealed glass.
3). Once breakage occurs, the glass disintegrates into small cubical fragments which are relatively armless to human body.
4). It withstands abrupt change of temperature. For example, a piece of 5mm tolerate the temperature variations within the range of 200°C.
Product Quality
1). Conforming to ASTM1048, ANSI Z97.1 , the American standard
2). Conforming to BS6206, the British standard
3). Conforming to GB 15763.2,GB17841 , 3C the Chinese standard.
4). Australia AS/NZS 2208 certification
5). SGCC certification
