| Place of Origin: | China |
| Brand Name: | Crystal Base |
| Certification: | CE/CSI/BS/ASTM |
| Model Number: | TSG |
| Minimum Order Quantity: | 100sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in Strong Plywood Crates or Cases with PE,paper or Saftpad interlayer |
| Delivery Time: | 15 days after order confirmed |
| Payment Terms: | T/T ,L/C,DP or western Union |
| Supply Ability: | 3,000 Sqm per Day |
| Product Name: | Tempered Safety Glass | Application: | Curtain Wall Glass.exhibitions Hall,Building Glass. |
|---|---|---|---|
| Size Of Panel: | Various | Colours: | Clear, Dark Bronze, Light Bronze, Dark Grey, Euro Grey, Mist Grey,Dark Green |
| Standard: | CE/CSI/BS/ASTM | Type: | Flat Or Curved Sheet Glass |
| Thickness: | 3-19mm | Transmittance: | More Than 88% |
| High Light: | laminated glass window,toughened safety glass |
||

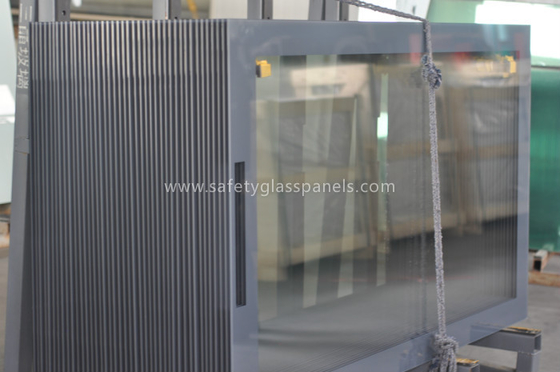

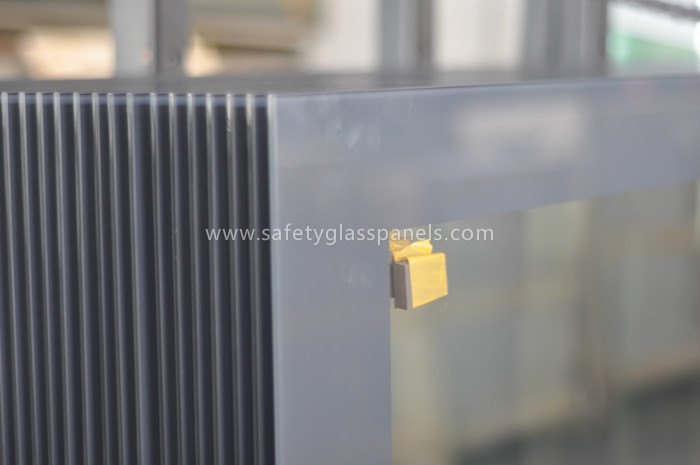

Reflective SGP Glass Laminated Insulated Glass Curtain Wall with Light Bronze
Specification:
|
me |
SGP glass laminated |
|
Size |
Min. Size:250mm*250mm Max. size:2440mm*3660mm |
|
Thickness |
Glass:3mm-19mm |
|
SGP:0.38mm,0.76mm,1.14mm,1.52mm |
|
|
Color
|
Glass: Clear, Dark Bronze, Light Bronze, Dark Grey, Euro Grey, Mist Grey,Dark Green, F. Green, Dark Blue, Lake Blue etc |
|
SGP: Clear, Milk, F. Green, Bronze, Light Grey, Dark Grey, Ocean Blue etc. |
|
|
Application |
Architectural door, window,ceiling, floor and curtain wall glass.exhibitions hall,Building glass. |
|
Production Range |
Low-E glass ,tempered glass, insulated glass, laminated glass, reflective glass etc. |
Product Feature
Extremely high safety: Even if the glass cracks, splinters will adhere to the layer and not scatter. In comparison with other kinds of glass, laminated glass has much higher strength to resist shock, burglary,
burst and bullets.
Energy-saving building materials: SGP layer impedes the transmission of solar heat and reduces cooling loads.
Sound control: SGP layer is an effective absorption of sound.
Tempered glass production process
1. Cutting : cutting the annealing glass to the actual needs of shape.
2. Glass edging: Edging machine to mill the four edges to prevent frund when steeling,while
maintaining the beautiful appearance.
3. Drilling hole:If need to drilling hole using drilling machine.
4. Washing dry:cleaning the glass with washing maching.
5. Tempered glass:Tempered glass is produced by heating annealed glass in a furnace to 700°,
then the glass is rapidly cooled with jets of cold air to 40°,through the procedures, the original
glass is formed of tempered glass.
