| Place of Origin: | China |
| Brand Name: | Crystal Base |
| Certification: | CE/CSI/BS/ASTM |
| Model Number: | TSG |
| Minimum Order Quantity: | 100sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in Strong Plywood Crates or Cases with PE,paper or Saftpad interlayer |
| Delivery Time: | 15 days after order confirmed |
| Payment Terms: | T/T ,L/C,DP or western Union |
| Supply Ability: | 3,000 Sqm per Day |
| Product Name: | Tempered Safety Glass | Application: | Railings, Framelsss Doors, Shower Enclosures |
|---|---|---|---|
| Size Of Panel: | Various | Colours: | Grey, Light Grey, Euro Grey, Green, F-green, Blue, Dark Blue, Ocean Blue |
| Standard: | CE/CSI/BS/ASTM | Type: | Flat Or Curved Sheet Glass |
| Thickness: | 3mm-19mm | Transmittance: | More Than 88% |
| High Light: | laminated glass window,toughened safety glass |
||

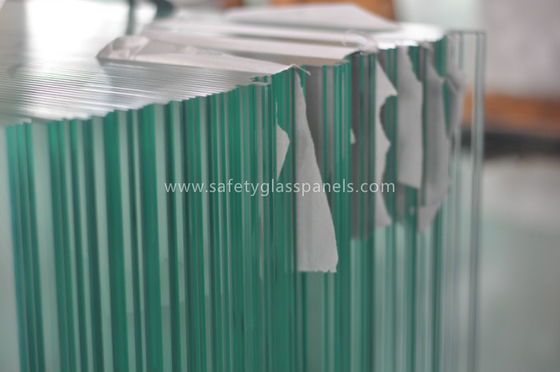

5mm Polished Tempered Safety Glass / Fireplace Tempered Glass Patterns
Specification:
Max size: 3000 x 9000mm ; Minimum : 180x 300mm
Thickness: 3mm-19mm
Color:clear,low-iron,F green,ocean blue,Fort blue,and other tinted glass.
Edge: Flat edge,grind edge,fine polished edge,bevelled edge and others
Corner:natural corner,grind corner,round corner with fine polished.
Holes: Drill work available at customer's option
Specification
|
type |
max size(mm) |
min size(mm) |
max thickness(mm) |
min thickness(mm) |
min curve radius |
|

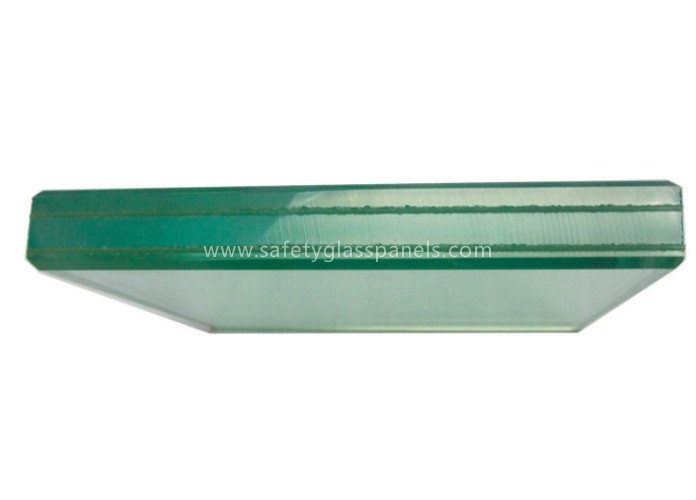

laminated glass |
6200X2800 |
200X100 |
36 |
4 |
420 |
|
horizontal tempered glass |
5000X2440 |
100X250 |
19 |
3.5 |
|
|
horizontal tempered glass |
2000X5000 |
100X250 |
19 |
8 |
|
|
bent tempered glass:mutiple-curved surface |
2500X2440 |
100X250 |
19 |
3.5 |
1000 |
Features:
Safety: when broken, tempered glass becomes small granules, which prevent substantial hurt to human body
High Strength: the strength of tempered glass is 4 to 5 times that of annealed glass
Bending Deflection: the bending deflection of tempered glass is 3 to 4 times that of annealed glass
Thermal Stability: tempered glass has excellent thermal stability, about 3 times that of annealed glass,which can withstand up to 300°C thermal shock.
Usage
storefronts, frameless facades, skylights, railings, framelsss doors, shower enclosures, table tops and furniture, fireplace enclosures, etc.
