| Place of Origin: | China |
| Brand Name: | Crystal Base |
| Certification: | CE/CSI/BS/ASTM |
| Model Number: | TSG |
| Minimum Order Quantity: | 100sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in Strong Plywood Crates or Cases with PE,paper or Saftpad interlayer |
| Delivery Time: | 15 days after order confirmed |
| Payment Terms: | T/T ,L/C,DP or western Union |
| Supply Ability: | 3,000 Sqm per Day |
| Product Name: | Glass Pool Fencing | Application: | Achitecture / Furniture |
|---|---|---|---|
| Size Of Panel: | Various | Colours: | Clear Or Tinted Tempered Glass. (Clear, Ultra White, Green, Blue, Gray, Brown.etc.) |
| Standard: | CE/CSI/BS/ASTM | Type: | Flat Or Curved Sheet Glass |
| Thickness: | 3mm, 4mm, 5mm, 6mm, 8mm, 10mm 15mm | Transmittance: | More Than 90% |
| Softening Temperature: | 650 ~ 700 ° | ||
| High Light: | tempered glass fence panels,glass swimming pool fence |
||

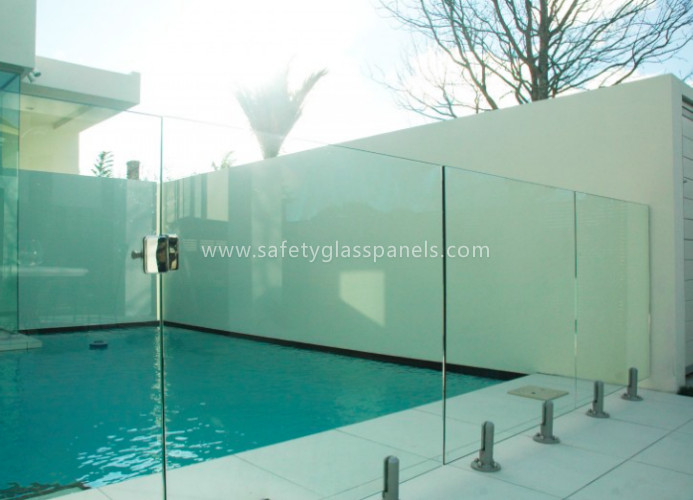

High Temperature Glass Swimming Pool Security Fence 3mm - 19mm With Polished Edge
1. Brief Introduction
Tempered glass is made by heating flat glass to just below its softening temperature and suddenly chilling it with jets of cold air. It results the outer skins under powerful compressive stress and the interior with severe tensile stress. In consequence, the impact applied to the glass will be overcome by the compressional stress on the surfaces to assure safety of use
2. Details Information
|
Thickness |
8-12mm mainly |
|
Size |
customized size |
|
Max Size |
2200 x 1200mm |
|
Minimum Size |
300 x 1200mm |
|
Max Curvature |
280mm |
|
Shape |
a) Flat or bent tempered glass, different shaped glass available. b) With or without silk-screen printing tempered glass. c) Holes: Drill work available at customer's option. d) Edge: Flat edge, grind edge, fine polished edge, and others. |
|
Color |
Clear or tinted tempered glass. (Clear, ultra white, green, blue, gray, brown.etc.) |
3. Advantages
1). No tong marks on the glass as adopts the horizontally tempering process.
2). 5 times harder than ordinary annealed glass.
3). Once breakage occurs, the glass disintegrates into small cubical fragments which are relatively armless to human body.
4). It withstands abrupt change of temperature. For example, a piece of 5mm tolerate the temperature variations within the range of 200°C.
4. Product Quality
1). Conforming to ASTM1048, ANSI Z97.1 , the American standard
2). Conforming to BS6206, the British standard
3). Conforming to GB 15763.2,GB17841 , 3C the Chinese standard.
4). Australia AS/NZS 2208 certification
5). SGCC certification
