| Place of Origin: | China |
| Brand Name: | Crystal Base |
| Certification: | CE/CSI/BS/ASTM |
| Model Number: | TSG |
| Minimum Order Quantity: | 100sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in Strong Plywood Crates or Cases with PE,paper or Saftpad interlayer |
| Delivery Time: | 15 days after order confirmed |
| Payment Terms: | T/T ,L/C,DP or western Union |
| Supply Ability: | 3,000 Sqm per Day |
| Product Name: | Tempered Safety Glass | Application: | Glass Partition, Window And Door,skylight,floor,sunroom |
|---|---|---|---|
| Size Of Panel: | Various | Colours: | Clear, Ultra Clear, Grey, Light Grey |
| Standard: | CE/CSI/BS/ASTM | Type: | Flat Or Curved Sheet Glass |
| Thickness: | 3mm, 4mm, 5mm, 6mm, 8mm, 10mm | Transmittance: | More Than 88% |
| Technique: | Clear Glass, Laminated Glass, Tempered | Shape: | Flat |
| High Light: | laminated glass window,tempered float glass |
||

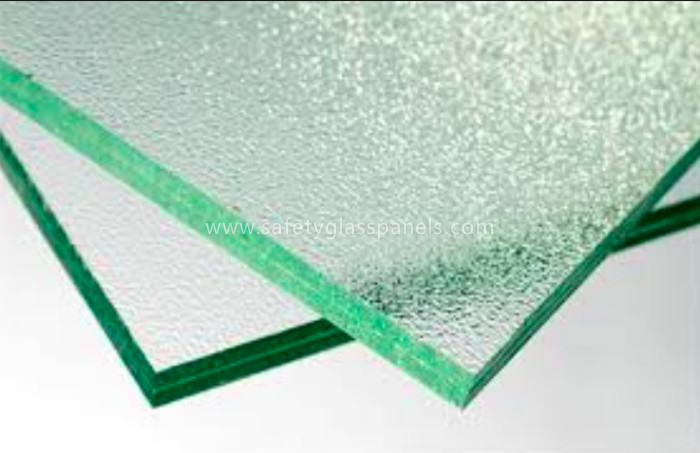

High Security Heat Resistant Tempered Glass Fence Panels
Specifications
|
Product Name |
Tempered Glass fence panels |
|
|
|
|
|
|
Glass Thickness |
3mm,4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm |
|
|
PVB Tickness (laminated tempered glass) |
0.38mm,0.76mm,1.14mm,1.52mm,1.9mm,2.28mm |
|
|
Size |
Minimum Size |
300mm×300mm |
|
Maximum Size |
2440mm×5000mm |
|
|
Color of tempered glass fence panels |
Clear, Ultra Clear, Grey, Light Grey, Euro Grey, Green, F-green, Blue, Dark Blue, Ocean Blue, etc. |
|
|
Specifications of tempered glass fence panels |
Clear float tempered glass, reflective tempered glass, tinted tempered glass, low-E tempered glass, tempered pattern glass, silk screen printed tempered glass. |
|
|
Packing Details of tempered glass fence panels |
(1)Interlay paper or plastic between two sheets; (2)Seaworthy wooden crates; (3) Iron belt for consolidation. |
|
|
Certification of tempered glass fence panels |
CE ,ISO9001,CCC,SGS |
|
|
|
|
|
|
Applications of tempered glass fence panels |

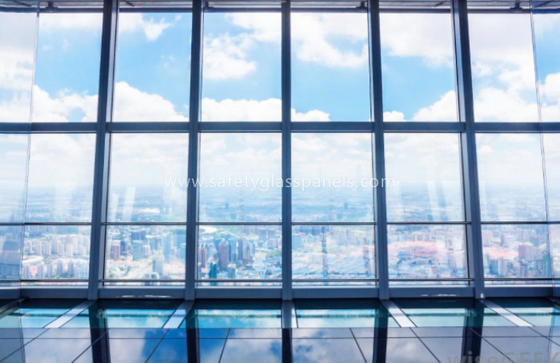

Glass partition, window and door,skylight, floor,sunroom, stair -steps,curtain wall, storefront, glass railing, pool fence, roofing,awning etc.. |
|
Description:
Laminated glass is created by two or more layers of float glass "sandwiched" together with color PVB interlayer,typically bonded under heat and pressure.
2. Tempered Laminated Glass security:
Laurel's tempered Laminated glass, its bending-resistance strength and thermal stability are 3 times than float glass; the impact-resistance strength has improved 4-6 times than ordinary glass now.
Therefore, the glass will not easily get damaged when it is impacted by external forces.Even is broken without sharp edge, so it doesn't hurt human bodies.
3. Tempered Laminated Glass Feature:
1). high safety glass:Laminated glass holds together in the event of breaking, protecting people free of harm .
2). Energy saving:good insulating performance.
3). With UV blocking function,so it protects furniture and other indoor decorations from fading.
4. Expert Tips of tempered Laminated glass:
Considering the characteristics of tempered glass, glass size should be confirmed before making production. Once tempered glass size is confirmed, tempered glass can not be made mechanical treatment any more, otherwise, it will be broken.
