| Place of Origin: | China |
| Brand Name: | Crystal Base |
| Certification: | CE/CSI/BS/ASTM |
| Model Number: | TSG |
| Minimum Order Quantity: | 100sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in Strong Plywood Crates or Cases with PE,paper or Saftpad interlayer |
| Delivery Time: | 15 days after order confirmed |
| Payment Terms: | T/T ,L/C,DP or western Union |
| Supply Ability: | 3,000 Sqm per Day |
| Product Name: | Insulated Glass UnitS | Application: | Airports And Buildings Near Highways And Railways, That Require Sound Insulation Properties. |
|---|---|---|---|
| Size Of Panel: | Various | Standard: | CE/CSI/BS/ASTM |
| Type: | Tinted/Reflective/Tempered/Laminated/Argon/Low-Eclear/tinted/Reflective/Tempered/Laminated/Argon/Low-E | Thickness: | 4+6A+4mm,5+9A+5mm,6+12A+6mm,8+15A+8mm |
| Transmittance: | 90% | Technique: | Tempered Glass |
| Color: | F-green, Sapphire Blue, Ocean Blue, Bronze, Dark Gray, And Golden Etc. | ||
| High Light: | insulated glass panels,thermal insulated glass |
||
8mm 10mm Custom Insulated Glass Unit Replacement For Office Building / Hospital
Specification
|
Product name |
insulated glass unit |
|
Glass composition |
Float glass, laminated glass, tempered glass,low-E glass,tinted glass etc. |
|
Thickness |
Glass Thickness:3mm -19mm
|
|
Size |
1)Max size: 3000mm x 8000mm Min size:200mmx200mm 2)According to the customer requirements |
|
Color |
Clear,white,bronze,blue,gray, green, dark green, F-green, sapphire blue, ocean blue, bronze, dark gray, and golden etc. |
|
Shape |
1)semi-circle 2)rectangle 3)arch 4)special shape |
|
Filled Gas |
1) air 2) vacuum 3) argon, etc. |
|
Application |

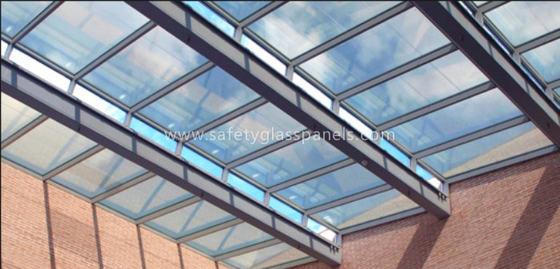

1)Office buildings, hospitals, hotels, houses and buildings with heating or cooling requirements. 2)For use in airport control towers, train windows and other environments that need regulated Airports and buildings near highways and railways, that require sound insulation properties. |
Description

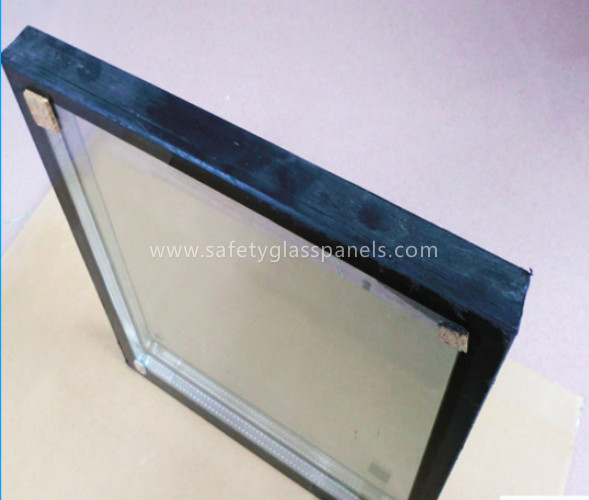

insulated Glass are hermetically sealed combinations of two or more panes of glass
separate by a dry airspace.The air trapped between the two pieces of glass acts as
an insulaor slowing the rate at which heat and cold can pass through the unit.
The more air sandwiched between the glass the better insulator effect you have.
Feature:
1. Engergy conversation,heat preservation and heat insulation
2. Comfortabenss sound insulation and noise reduction
3. Environment protection .low temperature but No dew
4. Beautiful clear and penetrated
The clear insulated glass data:
|
Code |
|
|
|
SHGC |
SC |
U Value W/(m2.K) |
||
|
T% |
R% |
T% |
R% |
|||||
|
1 |
4mm Clear Glass |
90 |
8 |
85 |
8 |
0.87 |
1.00 |
5.8 |
|
2 |
5mm Clear Glass |
90 |
8 |
83 |
8 |
0.86 |
0.98 |
5.8 |
|
3 |
6mm Clear Glass |
89 |
8 |
82 |
7 |
0.97 |
0.85 |
5.7 |
|
4 |
8mm Clear Glass |
88 |
8 |
79 |
7 |
0.83 |
0.95 |
5.7 |
|
5 |
10mm Clear Glass |
88 |
8 |
76 |
7 |
0.8 |
0.92 |
5.6 |
|
6 |
12mm Clear Glass |
87 |
8 |
72 |
7 |
0.78 |
0.87 |
5.5 |
|
7 |
15mm Clear Glass |
86 |
8 |
69 |
7 |
0.75 |
0.87 |
5.5 |
|
8 |
19mm Clear Glass |
83 |
8 |
62 |
6 |
0.7 |
0.81 |
5.3 |
