| Place of Origin: | China |
| Brand Name: | Crystal Base |
| Certification: | CE/CSI/BS/SGCC |
| Model Number: | TSG |
| Minimum Order Quantity: | 100sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in Strong Plywood Crates or Cases with PE,paper or Saftpad interlayer |
| Delivery Time: | 15 days after order confirmed |
| Payment Terms: | T/T ,L/C,DP or western Union |
| Supply Ability: | 3,000 Sqm per Day |
| Product Name: | Insulated Glass UnitS | Application: | Frontal Window Of Building . Hospital, Office Building . Subway Station Ect. |
|---|---|---|---|
| Size Of Panel: | Various | Standard: | CE/CSI/BS/ASTM |
| Type: | Clear/tinted/Reflective/Tempered/Laminated/Argon/Low-Eclear/tinted/Reflective/Tempered/Laminated/Argon/Low-E | Thickness: | 6+12A,15A,+6MM |
| Transmittance: | 90% | Technique: | INSULATING GLASS |
| Color: | LOW E,Ocean Blue,clear, Low Iron, Blue Ocean, | ||
| High Light: | insulated glass panels,double pane insulated glass |
||

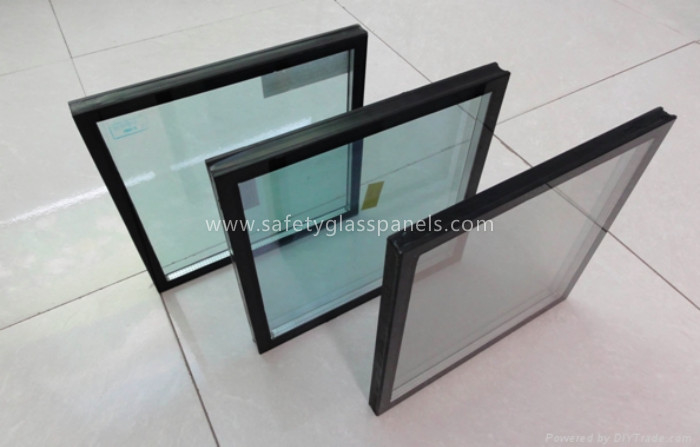

Commercial Clear Double Pane Insulated Glass Door And Curtain Wall Glass
Specification
The clear insulated glass data:
| Code | Product |
Visible light |
Solar energy |
SHGC | SC |
U Value W/(m2.K) |
||
| T% | R% | T% | R% | |||||
| 1 | 4mm Clear Glass | 90 | 8 | 85 | 8 | 0.87 | 1.00 | 5.8 |
| 2 | 5mm Clear Glass | 90 | 8 | 83 | 8 | 0.86 | 0.98 | 5.8 |
| 3 | 6mm Clear Glass | 89 | 8 | 82 | 7 | 0.97 | 0.85 | 5.7 |
| 4 | 8mm Clear Glass | 88 | 8 | 79 | 7 | 0.83 | 0.95 | 5.7 |
| 5 | 10mm Clear Glass | 88 | 8 | 76 | 7 | 0.8 | 0.92 | 5.6 |
| 6 | 12mm Clear Glass | 87 | 8 | 72 | 7 | 0.78 | 0.87 | 5.5 |
| 7 | 15mm Clear Glass | 86 | 8 | 69 | 7 | 0.75 | 0.87 | 5.5 |
| 8 | 19mm Clear Glass | 83 | 8 | 62 | 6 | 0.7 | 0.81 | 5.3 |
| Name | Insulated / Tempered glass units |
| Thickness | 3mm, 4mm, 5mm, 6mm, 8mm,10mm,12mm,15mm,19mm |
| Specification | 1830*2440,2134*3300,2500*3500mm |
| Color | clear, low iron, blue ocean |
Description
insulated Glass are hermetically sealed combinations of two or more panes of glass
separate by a dry airspace.The air trapped between the two pieces of glass acts as
an insulaor slowing the rate at which heat and cold can pass through the unit.
The more air sandwiched between the glass the better insulator effect you have.
Applications
|
All kinds of curtain wall glass . Indoor partition . Showcase . Refrigerater . Pavillion, brandshop . Glass Door . Window,elevator . Frontal window of building . Hospital, office building . Subway station ect. |
Feature:
1. Engergy conversation,heat preservation and heat insulation
2. Comfortabenss sound insulation and noise reduction
3. Environment protection .low temperature but No dew
4. Beautiful clear and penetrated
