| Place of Origin: | China |
| Brand Name: | Crystal Base |
| Certification: | CE/CSI/BS/ASTM |
| Model Number: | TSG |
| Minimum Order Quantity: | 100sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in Strong Plywood Crates or Cases with PE,paper or Saftpad interlayer |
| Delivery Time: | 15 days after order confirmed |
| Payment Terms: | T/T ,L/C,DP or western Union |
| Supply Ability: | 3,000 Sqm per Day |
| Product Name: | Laminated Safety Glass | Application: | Achitecture / Furniture |
|---|---|---|---|
| Size Of Panel: | Various | Colours: | Euro Bronze, Dark Bronze, Golden, Pink, Yellow, Etc. |
| Standard: | CE/CSI/BS/ASTM | Type: | Flat Or Curved Sheet Glass |
| Thickness: | 6.38--25.52mm | Transmittance: | More Than 88% |
| High Light: | laminated glass doors,laminated glass door |
||
Outdoor Decoration Laminated Safety Glass Soundproofing Handrail Furniture Glass
Product Description

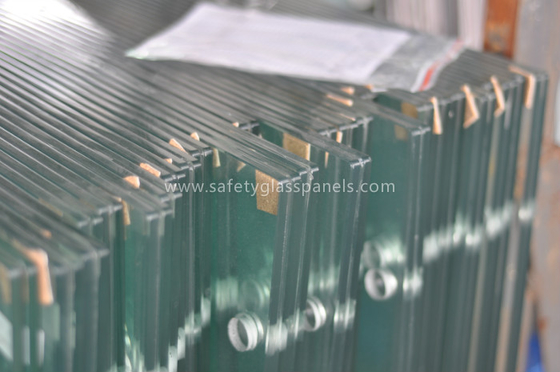

Laminated glass is produced by bonding two or more layers of glass sheets together with PVB interlayer, under certain high temperature and high pressure in autoclave.
By adding 2 or more PVB interlayers between the glass sheets, laminated glass offers increased security as it becomes progressively more difficult to break through.
Specifications
|
|
Container |
1X20GP |
1X40GP |
1X40HQ |
|
|
Loading capacity |
17.5T |
22.5T |
22.5T |
|
Thickness |
Kg/m² |
Square meter |
Square meter |
Square meter |
|
3mm |
7.5 |
2240 |
2840 |
2840 |
|
4mm |
10 |
1680 |
2130 |
2130 |
|
5mm |
12.5 |
1344 |
1704 |
1704 |
|
6mm |
15 |
1120 |
1420 |
1420 |
|
8mm |
20 |
840 |
1065 |
1065 |
|
10mm |
25 |
672 |
852 |
852 |
|
12mm |
30 |
560 |
710 |
710 |
|
15mm |
37.5 |
448 |
568 |
568 |
|
19mm |
47.5 |
354 |
448 |
448 |
|
Note |
All the above data is just for your reference |
|||
Color: orange,black,grey,white,milkwhite,purple, violet,green etc
Performance Features:
1. Excellent earthquake-resistance, high impact-resistance, good sound insulation.
2. Safety: if broken, the small pieces sticks on adhesive layers, avoiding splashing and hurting.
3. Good heat resistance and energy saving effect.
Application:

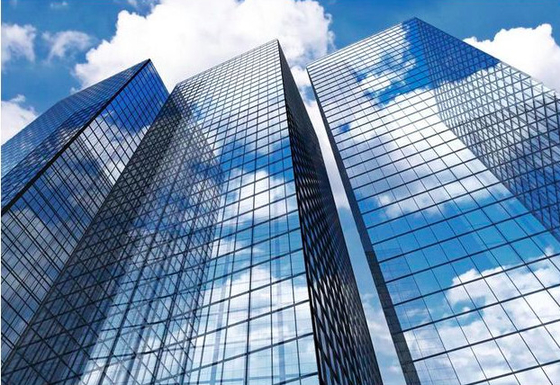

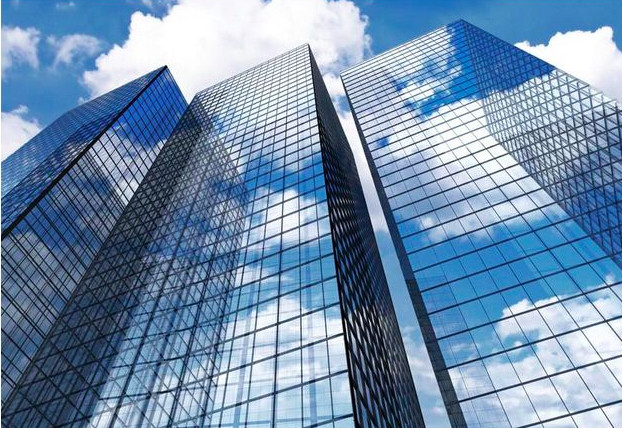

Glass curtain wall, Doors and windows, Building ceiling, Skylight window, Elevator guardrail,
Handrail glass, Furniture glass, Home and outdoor decoration, Green House, Furniture glass, etc.
