| Place of Origin: | China |
| Brand Name: | Crystal Base |
| Certification: | CE/CSI/BS/ASTM |
| Model Number: | TSG |
| Minimum Order Quantity: | 100sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in Strong Plywood Crates or Cases with PE,paper or Saftpad interlayer |
| Delivery Time: | 15 days after order confirmed |
| Payment Terms: | T/T ,L/C,DP or western Union |
| Supply Ability: | 3,000 Sqm per Day |
| Product Name: | Laminated Safety Glass/5mm Tempered Glass | Application: | Curtain Wall Glass.exhibitions Hall,Building Glass. |
|---|---|---|---|
| Size Of Panel: | Various | Standard: | CE/CSI/BS/ASTM |
| Type: | Float Glass | Thickness: | 5 Mm |
| Transmittance: | More Than 88% | Technique: | Laminated Glass, Tempered Glass, Tinted Glass |
| Color: | Clear, Brown, Blue, Green, | ||
| High Light: | safety toughened glass,laminated glass door |
||

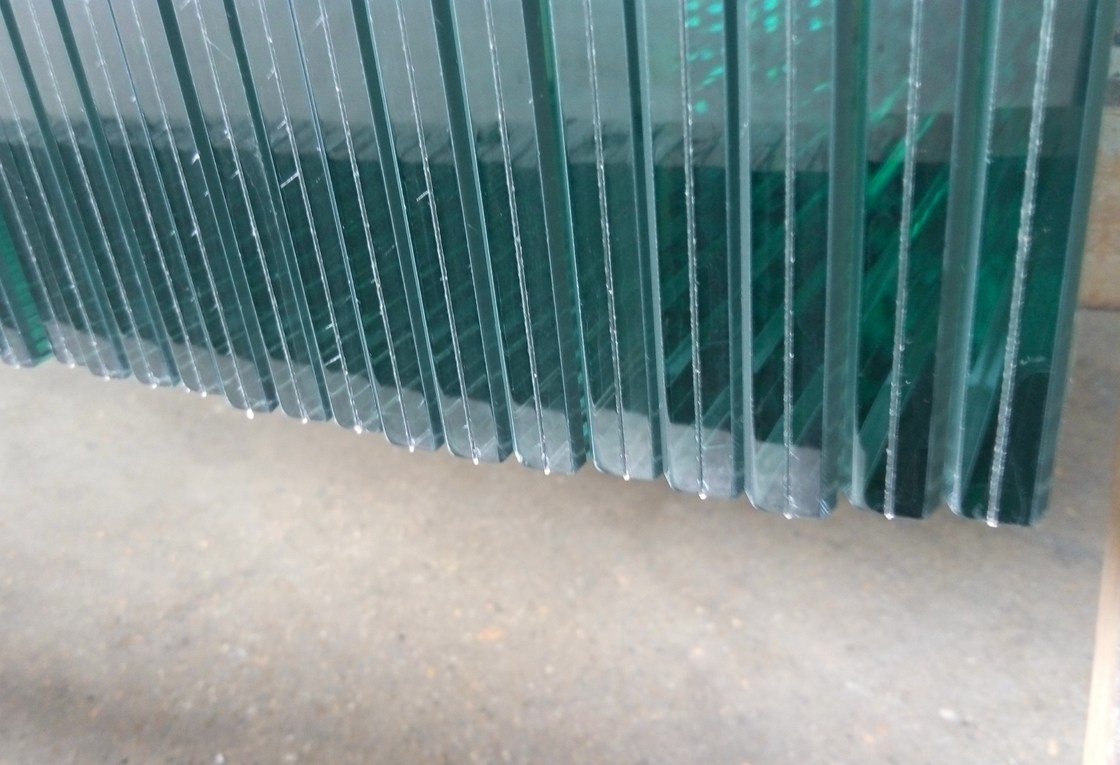

EU CE Certification Curved Laminated Toughened Glass For Exhibitions Hall
Specifications:
Thickness: 5 mm
Color: clear, brown, blue, green, grey, etc.
Max specification:
Flat tempered glass 3000*8000mm
Bent tempered glass 3000*5000mm, R=1500mm
Considering the characteristics of 5mm tempered glass, glass size should be confirmed before making production. Once tempered glass size is confirmed, 5mm tempered glass can not be made mechanical treatment any more, and otherwise, it will be broken.
Applications:
5mm tempered glass is safety glass, which is widely used as window glass, door glass, curtain wall glass, fencing glass in buildings, hotels, curtain wall, etc.
Features:
Description
Laminated glass is a sandwich made of one piece of plastic Poly Vinyl Butyral between two or more glasses. The PVB sticks with the glass, forms chemical as well as mechanical bonds. When laminated with annealed glass, the layer maintains the geometric integrity of the pane in case of breakage. Also it gives acoustic insulation as well as gives protection against damage caused due to UV radiation because it cuts almost 99% of UV radiation present in the sunlight. A Laminated glass is regarded as a safety glass by most of the standards.
