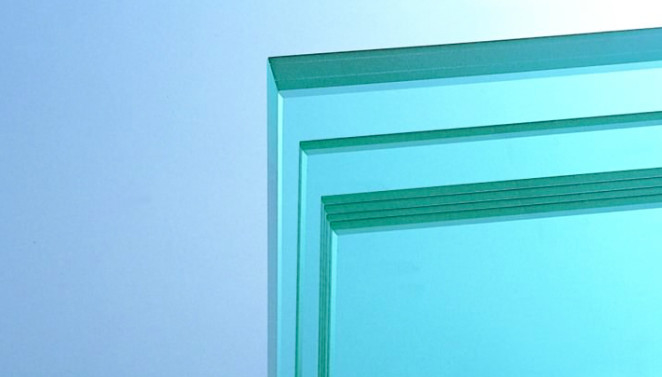

Clear PVB Laminated Safety Glass Sheets , Laminated Architectural Glass

Product Details:

Place of Origin:	China
Brand Name:	Crystal Base
Certification:	CE/CSI/BS/ASTM
Model Number:	TSG

Payment & Shipping Terms:

Minimum Order Quantity:	100sqm
Price:	negotiation
Packaging Details:	Packed in Strong Plywood Crates or Cases with PE,paper or Saftpad interlayer
Delivery Time:	15 days after order confirmed
Payment Terms:	T/T ,L/C,DP or western Union
Supply Ability:	3,000 Sqm per Day

Contact Now

Detailed Product Description

Product Name:	Laminated Safety Glass	Application:	Architectural Door, Window, Ceiling, Floor And Curtain Wall Glass.
Size Of Panel:	Various	Colours:	Clear, Dark Bronze, Light Bronze, Dark Grey, Euro Grey,
Standard:	CE/CSI/BS/ASTM	Type:	Flat Or Curved Sheet Glass
Thickness:	6.38-25.52mm	Transmittance:	More Than 88%
High Light:	safety toughened glass , laminated glass door

Clear PVB Laminated Safety Glass Sheets 8.38mm 10.76mm , Laminated Architectural Glass

Product Description

Laminated glass is produced by bonding two or more layers of glass sheets together with PVB interlayer, under certain high temperature and high pressure in autoclave.

By adding 2 or more PVB interlayers between the glass sheets, laminated glass offers increased security as it becomes progressively more difficult to break through.

Performance Features:

1. Excellent earthquake-resistance, high impact-resistance, good sound insulation.
2. Safety: if broken, the small pieces sticks on adhesive layers, avoiding splashing and hurting.
3. Good heat resistance and energy saving effect.

Application

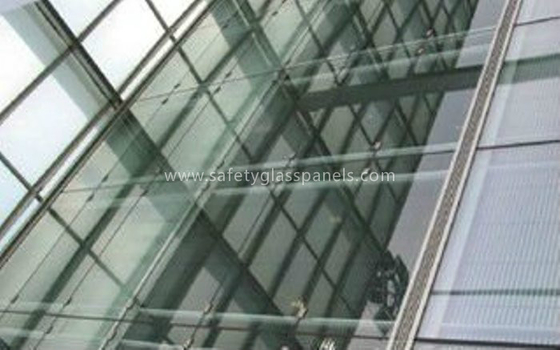

1. Architectural door, window, ceiling, floor and curtain wall glass.
2. Ships and automobile windshield glass.

3. Bullet/violence- resistant glass for financial places,exhibitions hall and hospital.

4. Safety glass for furniture.

Specifications

Min. Size of laminated glass	Flat laminated glass: 400 × 500mm Bent laminated glass: 300 × 300mm
Max. size of laminated glass	Flat laminated glass: 2500 × 3500mm Bent laminated glass: 700 × 2600mm
Thickness:	Glass:2mm,3mm,4mm,5mm,6mm,8mm,10mm,12mm,15,19mm PVB: 0.38mm,0.76mm,1.14mm,1.52mm or more. EVA: 0.38mm,0.76mm,1.14mm,1.52mm or more. SGP:1.52mm,3.04mm2+0.38+2mm,3+0.38+3mm, 4+0.38+4mm,5+0.38+5mm,6+0.38+6 mm, 8+0.38+8mm 8+0.76+8mm, 10+0.38+10, 12+0.38+12mm etc
Color	PVB Color: Clear, Milk, F. Green, Bronze, Light Grey, Dark Grey etc. Glass Color: Clear, Dark Bronze, Light Bronze, Dark Grey, Euro Grey, Dark Green, F. Green, Dark Blue, Lake Blue etc.

Min. Size of

laminated glass

Flat laminated glass: 400 × 500mm

Bent laminated glass: 300 × 300mm

Max. size of

laminated glass

Flat laminated glass: 2500 × 3500mm

Bent laminated glass: 700 × 2600mm

Thickness:

Glass:2mm,3mm,4mm,5mm,6mm,8mm,10mm,12mm,15,19mm
PVB: 0.38mm,0.76mm,1.14mm,1.52mm or more.
EVA: 0.38mm,0.76mm,1.14mm,1.52mm or more.
SGP:1.52mm,3.04mm2+0.38+2mm,3+0.38+3mm, 4+0.38+4mm,5+0.38+5mm,6+0.38+6 mm,
8+0.38+8mm 8+0.76+8mm, 10+0.38+10, 12+0.38+12mm etc

Color

PVB Color: Clear, Milk, F. Green, Bronze, Light Grey, Dark Grey etc.

Glass Color: Clear, Dark Bronze, Light Bronze, Dark Grey, Euro Grey,

Dark Green, F. Green, Dark Blue, Lake Blue etc.

Clear PVB Laminated Safety Glass Sheets , Laminated Architectural Glass
