0.38mm Clear PVB film / Laminated glass film for Architecture , Automobile 500mm--3000mm

0.38mm Clear PVB film Laminated glass for Architecture, Automobile 500mm--3000mm

CRYSTAL BASE

PVB interlayer film is a glass material comprises a polymer resin, polyvinyl butyral , a plasticizer DHA plasticized by extrusion molding . PVB laminated glass film thickness is 0.2mm-2mm, inorganic glass has good adhesion , with anti- penetration, heat, cold , noise , UV and other features
PVB interlayer film is mainly used for the glass lamination between two or more pieces of glass into a layer of polyvinyl butyral PVB film as a main component . As PVB laminated safety glass , insulation, noise control and isolation UV and many other features , widely used in construction , automotive and other industries.

Security Features

Since toughness of the adhesive interlayer and the glass , the laminated glass construction would make an excellent safety glass. Even if the glass was destroyed, its fragments and the film will be sticked together , for avoiding the personal injury Resistance to penetration
Compared to other glass products , laminated glass for better personal and property protection. Whether mounted vertically or inclined installation , it can withstand accidental impact penetration , and the piece of glass remains intact , even withstand further shocks. Even the destruction of the middle layer of the protective effect of the building remains , until the glass is replaced.


Solar energy control features

Natural light transmission window is a great efficacy , but also result in too much of the energy of the sun . Laminated glass with various stabilizers and coloring by absorbing ultraviolet, visible and infrared wavelength spectrum of the thermal energy to the incremental control , the majority of the energy is absorbed and re-radiated by the convection and dissipated to the outside .


UV

PVB interlayer film is reduced to the maximum ultraviolet blocking 99 % of the harmful rays . This will help avoid indoor goods and people harmed by ultraviolet radiation .
Noise characteristics
Glass is a solid substance is not an effective noise barriers , noise and indoor staff will be conducting work through glass, impact lives. The PVB interlayer for laminated glass types have a blocking effect on sound waves , can be very effective in reducing annoying noise conduction.

Product Specifications

Application method

Glass cutting and cleaning→PVB film lamination→Pre-pressure exhaustion→ High pressure formation

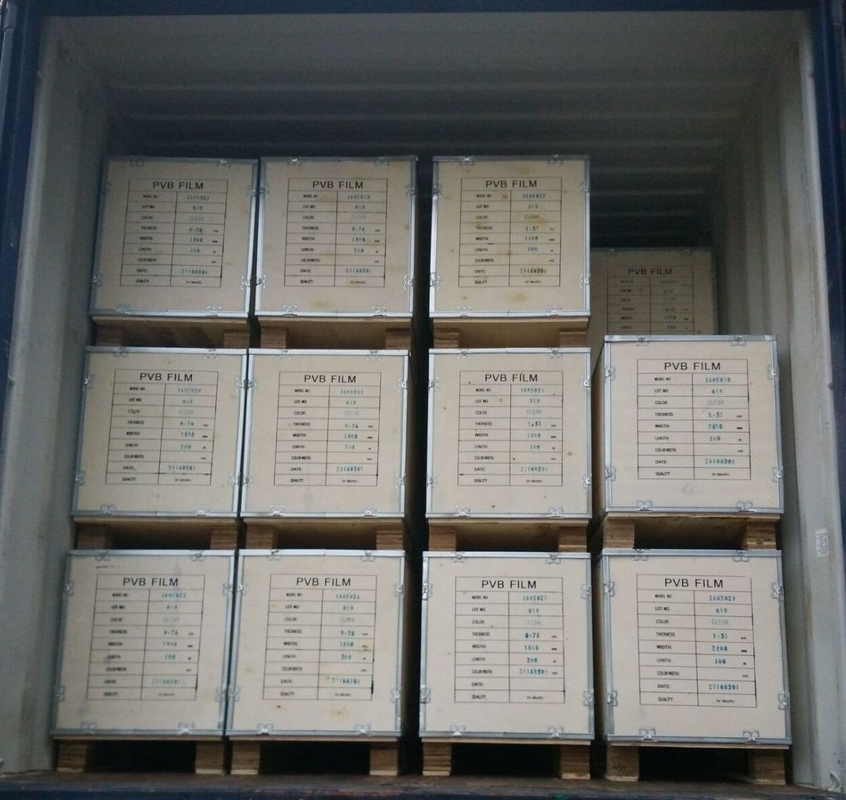

PVB film is separated with PE film, packed with aluminum foil bag and wood box outside. Sunshine, rain and violent vibration must be avoided during transportation. The film must be stored in clean freight house in case of direct sunshine.It must be stored under 20 ±5 °C must be stored in clean freight house in case of direct sunshine.It must be stored under 20 °C when package is opened with relative humidity of 20%-40%.

Application field

Widely used to car, airplane, tank, marine ship and other communication tools for heat insulation safety glass.

Widely used to safety glass, protection shield, construction glass,composite steel plate and so on.
