| Place of Origin: | China |
| Brand Name: | Crystal Base |
| Certification: | CE/CSI/BS/ASTM |
| Model Number: | TSG |
| Minimum Order Quantity: | 100sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in Strong Plywood Crates or Cases with PE,paper or Saftpad interlayer |
| Delivery Time: | 15 days after order confirmed |
| Payment Terms: | T/T ,L/C,DP or western Union |
| Supply Ability: | 3,000 Sqm per Day |
| Product Name: | Painted Glass | Application: | Window And Door,glass Railing,stairs,and So On |
|---|---|---|---|
| Size Of Panel: | Various | Standard: | CE/CSI/BS/ASTM |
| Type: | Silk-screen Glass, Silk Screen Printed Glass, Colored Glazed Glass, Silk-screen Laminated Glass, Ect. | Thickness: | 3mm,4mm,5mm 8mm 10mm 12mm 15mm |
| Technique: | Tempered Glass | Color: | Bronze,pink,green,blue,grey And So On |
| Shape: | Flat | ||
| High Light: | clear tempered glass,clear laminated glass |
||

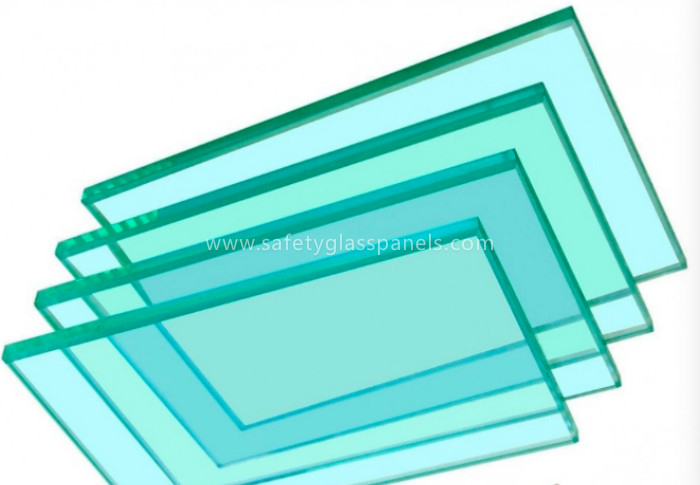

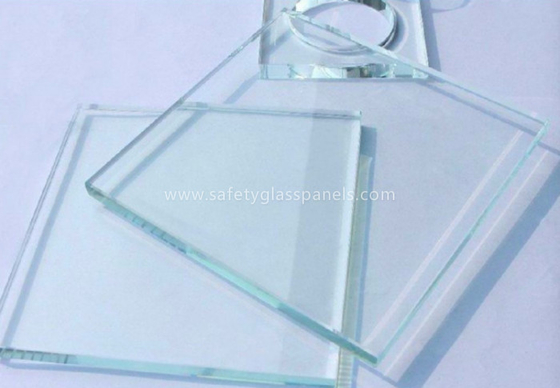

Flat Panel Display Clear / Tinted Float Glass Thickness 3mm to 19mm
Specification :
1. clear float glass
2, tinted float glass
3. thickness:1mm-25mm
| Color | clear, ultra clear ,euro bronze, golden bronze,euro grey.dark grey,dark blue, lake blue, ocean blue. french green(F-green),dark green,pink etc. | |
| Thickness | 2mm,3mm,4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm .22mm .25mm | |
| Normal Sizes | 1650*2140 1650*2200 1524*2134 3300*2250mm 3300*2440mm 3660*2440mm | |
CRYSTAL BASE GLASS PERFORMANCE OF CLEAR FLOAT GLASS
| Thickness | Visible Light Transmittance tv(%) |
Visible Light Reflectance pv(%) |
Direct Solar Transmittance te(%) |
Direct Solar Reflectance pe(%) |
Total solar energy transmittance g(%) |
| 2mm | 90.69 | 8.30 | 87.22 | 7.90 | 84.70 |
| 3mm | 90.25 | 8.30 | 85.09 | 7.70 | 83.00 |
| 4mm | 89.82 | 8.30 | 83.04 | 7.60 | 82.40 |
| 5mm | 89.39 | 8.20 | 81.07 | 7.40 | 81.50 |
| 6mm | 88.96 | 8.20 | 79.17 | 7.30 | 78.10 |
| 8mm | 88.31 | 8.10 | 76.51 | 7.10 | 74.70 |
| 10mm | 87.47 | 8.10 | 73.61 | 6.90 | 69.80 |
| 12mm | 86.25 | 8.00 | 68.53 | 6.60 |
64.00 |
Description:
Float glass is a sheet of glass made by floating molten glass on a bed of molten metal, typically tin, although lead and various low melting point alloys were used in the past. This method gives the sheet uniform thickness and very flat surfaces. Modern windows are made from float glass. Most float glass is soda-lime glass, but relatively minor quantities of specialty borosilicate[1] and flat panel display glass are also produced using the float glass process.
